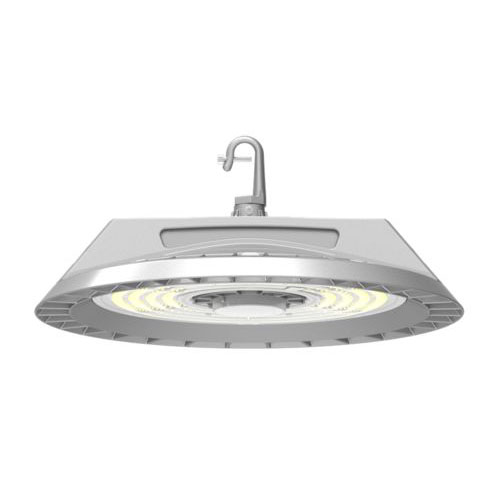

200w UFO LED High Bay Light
200w UFO LED High Bay Light 200w UFO LED High Bay Light 200w UFO LED High Bay Light 200w UFO LED High Bay Light 200w UFO LED High Bay Light

200w UFO LED High Bay Light

Product ID : EG-HB200W-08
Product Tags :
Product Description



200w LED High Bay Light--Microwave sensor Design


Item NO: EG-HB200w-08


.High Performance with Microwave sensor Design

.Patent Optics PC Anti-glare LENS: 60°   90°   120°

.Light Efficacy>140Lm/w

.Die-casting Aluminum heat sink with good dissipation

.Ingress protection IP66 and Impact protection IK10

.Air Convection and breathing valve Design

.Meanwell driver/MOSO driver optional

.CREE 3030 LED chip

.TM-21 Test

.Lifespan 50,000hrs

.Warranty 5 years




Specification:


Power: 200w

Voltage: AC90-305v 50/60Hz

Size: 382*382*160mm

Power supply: Meanwell / MOSO optional

LED Chip: CREE 3030 * 256pcs

LED Efficacy: 140Lm/w ± 5%

LED Lumen: 28000Lm ± 5%

Beam angle: 60°  90°  120°

IP Rating:  IP66

IK Rating:  IK10

TM-21 test report

Temperature Test report

Emergency  0-10v dimmable  Microwave sensor optional

Warranty 5 years










Wiring Diagram




Installation Method






Packing






IES Download




Microsensor










Micro 5.jpg


Vedio


https://www.youtube.com/watch?v=OPhKSyxNfRA
