Product Name : 100w LED Area Lighting
Product ID : EG-AL100w-01
Power Supply : Meanwell ELG/HLG
LED Chip : Nichia 3030
Color : Black/ Silver
IP Rating : IP65
Certification : CE ROHS TUV SAA PSA
Directions


100w LED Area Light




dimmable.png daylight.pngdali.png 下载.png   ip66-standard-symbol_318-52608.jpgip66-standard-symbol_318-52608.jpg





                         20170527 TGD-ML-组合.439.png






                         20170527 TGD-ML-组合.440.png








Heatsink:  Die-cast Aluminum with excellent thermal management

                         Keep the junction temperature below to 65°

LED Source:  Nichia 3030 (Lm80 test)

Power Supply: Meanwell ELG --European

                          Meanwell HLG-US

Patent Optical LENS Design:

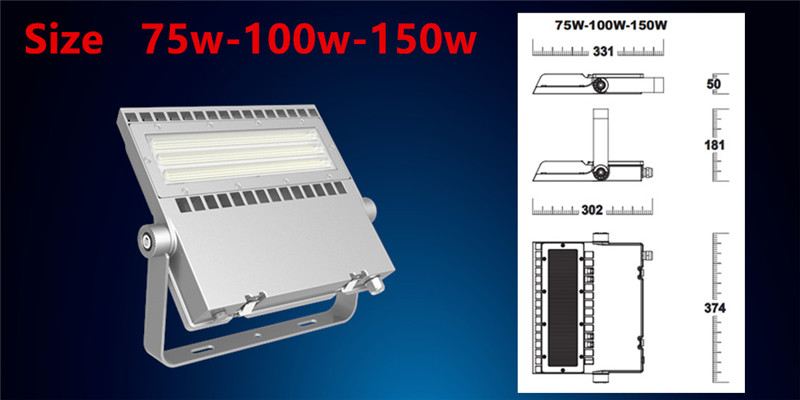

Size:


              Size 1.png



Specification:


Power: 100w

Input Voltage: AC200-305v for European

                         AC90-305v for US

                         AC180-528v for High-voltage

Size: 330*373*50mm

PF: >0.95

IP Rating: IP65

Raw material: Die-casting Aluminum

Light Efficiency: 140Lm/w at CRI 70

                             130Lm/w at CRI 80

Luminous Flux: 13000Lm-14000Lm

Input Current: 0.45A @ 220v

Output Voltage: 48v

Output Current: 1.9A

Color Temperature: 4000k, 5000k, 5700k

Power Supply: MEANWELL

Light Source: Nichia 3030 (Lm80 test)*136pcs

Beam Angle:  30*90° Asymmetric

                        24*70°  Symmetric

                        36*88°   Symmetric


  图片3_副本.png      图片4_副本.png      图片5_副本.png


Work Temperature: -40° ~ +45°

Storage Temperature: -40° ~ +85°

Installation:  Adjustable bracket, Surface , Wall Mounting


 20170527 TGD-ML-组合.439_副本.png        20170524 TGD-L-渲染图.418_副本.png        QQ图片20170819210432.png


Lifespan: 50,000hrs at 45°

Warranty: 5years

Certification: TUV CE ROHS FCC IK08 IP66




Applications:


. 30*90° --- Asymmetric   Tunnel lighting, billboard lighting, wall washer lighting

. 24*70° ---  Symmetric (narrow)    Wall washer lighting, spotlighting, Stadium Lighting

. 36*88° ---  Symmetric (wide)        Flood Lighting, Billboard Lighting, Stadium Lighting


Packing:


Product Weight: 4.6kgs

Inner Box packing size: 353*396*74mm of each box / 5.2kgs

Outer Carton packing size: 408*312*373mm/Ctn , 4pcs in one carton/22.31kgs




packing 1.png




Average Illuminance Diagram(Continuous light test 6000hrs light decay)








100w Light Distribution-Asymmetric  30*90°








100w Illumination--Asymmetric 30*90°








100w Light Distribution-Symmetric  24*70°






100w Illumination-Symmetric 24*70°







100w Light Distribution-Symmetric 36*88°







100w Illumination-Symmetric 36*88°






Project:













IES File:




100w-30x90°-5700k.rar

100w-30x90°-5700K_IESNA2002.rar

100w-24x70°-5700k.rar

100w-24x70°-5700k_IESNA2002.rar

100w-36x88°-5700k.rar

100w-36x88°_IESNA2002.rar
