100w LED UFO High Bay Light - 09 Eco Series
Item No: EG-HB100w-09
The Newest Generation
Low profile and Lightweigh body with High performance economic cost
Energy costing >50%
Features:
.Anti-glare Optics polycarbonate LENS: 60°，90°，120°
.Light Efficacy 130Lm/w
.Die-casting aluminum heat sink with good dissipation
.High-performance MOSO-MTP driver
.Waterproof IP66 and impact protect IK10
.Osram 2835 LED Chip
.Ring, Hook, Adjustable bracket mounted
.Warranty 5 years
Specification:
Power: 100w
Size: 295*295*152mm
Voltage: AC90-305v
LED Chip: Osram 2835
Power Supply: MOSO-MTP-120w
Efficacy: 135Lm/w ± 10%
Lumen: 13000Lm
Beam angle: 60°，90°, 120°
IP Rate: IP66
IK Rate: IK10
Warranty : 5 years
Wiring diagram

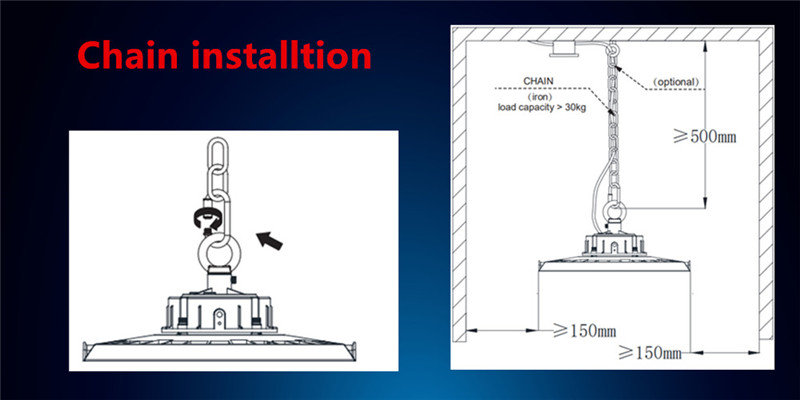

Installation Method
Packing:
IES Download
IES-100W-60° EG-HB100W-09 .pdf
IES-100W-90°-EG-HB100w-09 .pdf
IES-100w-120°-EG-HB100W-09.pdf
More info: info@ledevergreen.com
