200w LED High Bay Light

200w  LED High Bay Light
200w  LED High Bay Light
200w  LED High Bay Light
200w  LED High Bay Light
200w  LED High Bay Light
200w  LED High Bay Light

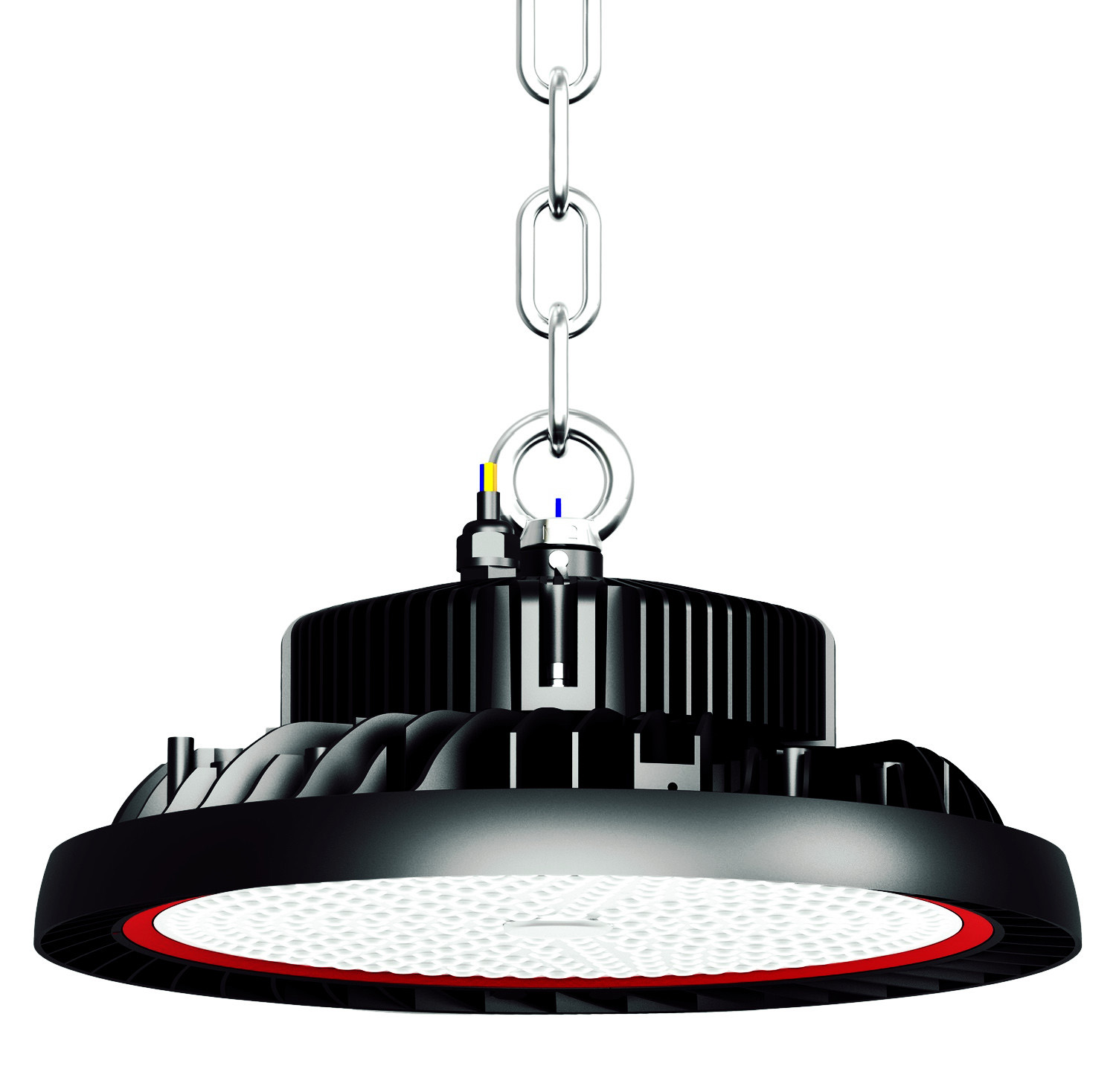

Product Name : 200w LED High Bay Light
Product ID : EG-HB200W-07
Color : Black/ White
Driver : Meanwell / Moso
PF : >0.95
Beam Angle : 60°,90°,120°, 150°
IP Rating : IP66
Directions

200w LED High Bay Light  --Innovation Private mold design














Specification:



Power: 200w

Input Voltage: 100-240v AC50/60Hz

Size: ¢360*188 mm

PF: >0.95

IP Rating: IP66

Raw-material: 6063 Aluminum Alloy with super thermal management

                         keeping the junction temperature below 65°

Light Efficiency: Nichia 150Lm/w

                             Lumileds 130Lm/w

Luminous Flux: 26000-30000Lm

Beam Angle: 60°,90°,120°, 150°

Color Temperature: 2500-6500k

Power Supply: MEANWELL / MOSO warranty 5 years

Light Source: Lumileds / Nichia 3030*308LEDS

CRI: 80

Installation: Hook Mounting / Ring Mounting / Bracket Mounting

Installation height: 5-30M

Product Weight: 7.8kgs

Packing: 450*450*200mm  8.3kgs/ctn

Warranty: 5years

Certification: TUV CE FCC IK08 IP66




dali.jpg   dimmable.png   daylight.png   microwawe.png   zigbee.png





41033.gif    41014.gif   imgres-2.png    图片4.png




Application:


Warehouse,  Factories, Workshops, Highway toll station, Gas station, Supermarkets, Exhibition halls, Stadiums and similar applications.







 Exploded Diagram:









Size:










Light Distribution Curve:



                100w-50°-07 UFO.png      150w-90°-07 UFO.png













    100w-120°-07 UFO.png      150w-150°-07 UFO.png



Ring Mounting:









Installation Method:


 Suspended:







Adjustable bracket Mounting:












Project:







IES Download:


IES-200W-50°_IESNA2002.rar

IES-200W 90°.rar

IES-200W-120°_IESNA2002.rar

IES-200W 150°.rar
