Product Name : 28w LED Tri-proof Light
Product ID : EG-28WTPL-01
Color : Silver/White
Rating : IP65
PF : >0.95
Warranty : 5 years
Beam Angle : 120°
Directions

28w LED Tri-proof Light


Private mold integrated Design


dali.jpg dimmable.pngdimmable.png dimmable.pngdaylight.png  microwawe.png  zigbee.png  IP65 - 副本.jpg  下载.png  emergency.jpg


SPECIFICATION:


.Power: 28w

.Size: 600*116*64mm

.Input Voltage: AC100-240V

.Power Factor:>0.95

.Installation way: Suspended Mounting / Surfaced Mounting

.Light Efficiency: 130Lm/w

.CRI:>80

.Led Chip: Epistar LED chip / Osram LED chip

.Power Supply: Lifud Driver flicker free

.Color: Siliver/White

.Beam Angle: 120°

.Rating: IP65

.Certification: CE ROHS IK08 IP65 TUV

.Carton Size:  L126*W33.5*H11cm

.Packing: 4pcs/Ctns   7.2kgs/Ctn

.Warranty: 5years


41014.gif   41033.gif   imgres-2.png   图片4.png



Certification:

.Integrated Sphere Test Report

.IP65 Test Report

.IES Test Report

.IK08 Test Report

.ERP 1000h Test Report

.Vibration Test



Raw matrials:  Extruded Aluminum 6063

                               All housing made of Aluminum with white powder coating

                               xidation bright siliver treatment, corrosion resistance.


                             45W支架灯图片-4 (1).JPG


Integrated LED Module PCB design, PCB thinkness 1.6mm, Thermal conductivity 2.0



 Size:








Light Distribution Curve:



                               120.jpg        28W.png


0.6m Illuminiare.png




Installation Method:



Suspended Mounting:

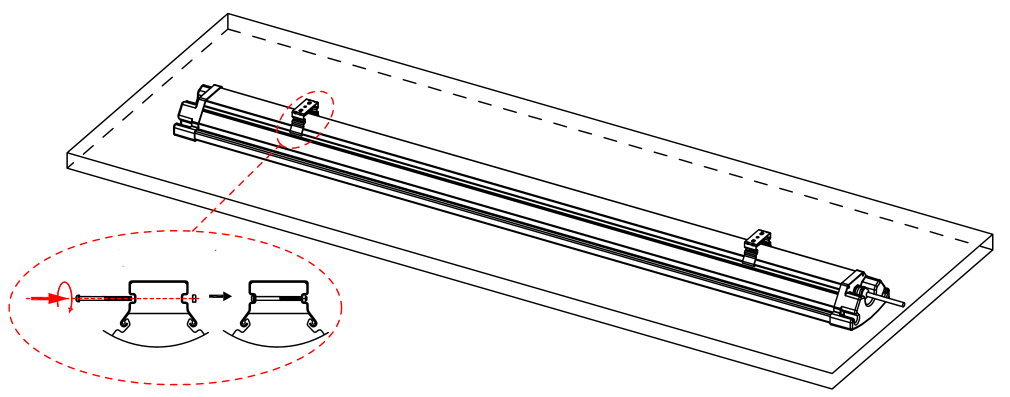

Surfaced Mounting:









   45° Wall Mounting:









 Packing Information:


                              Product N.W.: 1.4kgs

                       Carton Size: 126*33.5*11cm    4pcs/Ctn

                       Carton Weight: 7.2kgs








                              影棚拍摄-625_副本.jpg              影棚拍摄-628_副本.jpg












 Project:












IES Test Report:


IES-28w-0.6m-LED Triproof Light.rar
