150w LED UFO High Bay Light - Eco 09 Series
Item No: EG-HB150w-09
The Newest Generation
Low profile and Lightweight body with High performance economic cost
Energy costing >50%
Features:
.Anti-glare Optics polycarbonate LENS: 60°，90°，120°
.Light Efficacy 130Lm/w
.Die-casting aluminum heat sink with good dissipation
.High-performance MOSO-MTP driver
.Waterproof IP66 and impact protect IK10
.Osram 2835 LED Chip
.Ring, Hook, Adjustable bracket mounted
.Warranty 5 years
Specification:
Power: 150w

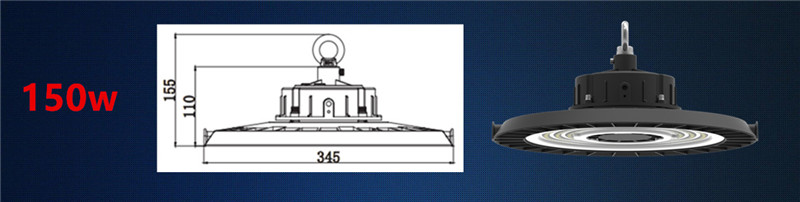

Size: 345*345*155mm
Voltage: AC90-305v
LED Chip: Osram 2835
Power Supply: MOSO-MTP-160w
Efficacy: 135Lm/w ± 10%
Lumen: 19500Lm
Beam angle: 60°，90°, 120°
IP Rate: IP66
IK Rate: IK10
Warranty : 5 years
Wiring diagram
Installation Method
Packing:
IES download:
IES-150w-120°-EG-HB150W-09.pdf
