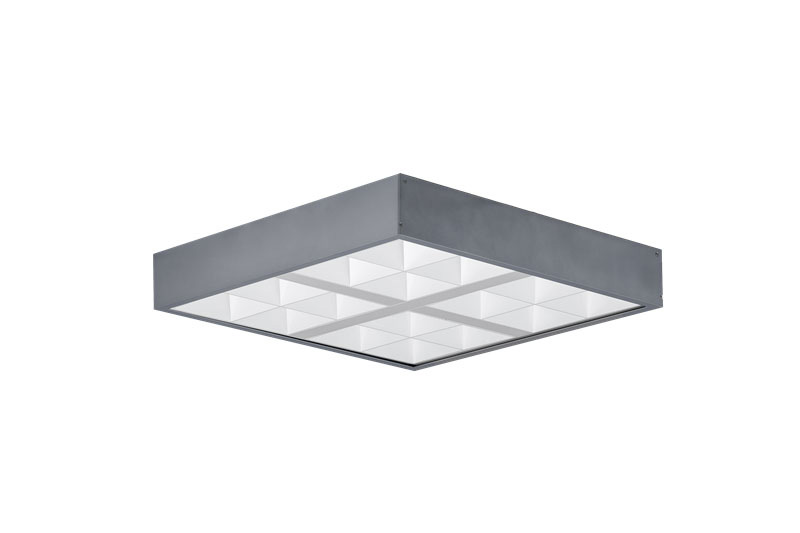

40w LED Grille Panel Light



Pro A Sereis



40w LED Grille Panel Light  --- 595*595*85mm







UGR<16

Why choose UGR<16 Anti-glare LED Luminaires?



The right light can have a favorable effect on various physiological processed in the human body. Statistically, 75% of office workers don't feel comofortable at their work time.

EVERGREEN LED Grille Panel light solutions can enhance their comfort,task performance, and productivity. Anti-glare light and light consistency allows the teachers to create the right mood to help pupiles to concentrate, relax etc. depending on the activity at hand,and so perform better overall.



Product Benefit:



--Light guided via quadrification optic lens for maximum luminaire efficiency, perfect glare reduction(UGR<16) and homogenous light distribution(85°).

--Robust iron struction with white painting treatment.

--Energy saving upt 50%(compare to fluorescnet lamps)

--Flicker free light thanks to special electronic control gear.

--Luminaire efficacy: >120Lm/w

--Initial color consistency: <5 SDCM

--Lifetime(L80/B50) up to 50,000hrs(at 25°）

--Warranty 5 years









ITEM No: EG-GL40W-595595-01





Specification：





Power: 40w

Size: 5955*595*85mm

Input Voltage: 100-240v AC50/60Hz



Material housing:  Galvanized / Steel optional

Finishing:              Powder paint surface treatment

Optical material:    Polycarbonate



Operating temperature:  -10° ~ +40°

Storage temperature:     -25° ~ +55°



On-/off-cycles:       100,000

Color temperature idnex CRI:    80

Degree of protection(IP):           IP20

Fire-proof rated:                         V2

LED Chip:                            Everlight or Osram 2835

LED Driver:                     OSRAM

Driver failure rate(at 5,000hrs):    1%

LED Efficacy:                      Standard 110Lm/w , Optional 130Lm/w

LED Lumen:                        5200Lm

Light Distribution:                     88°

Warranty:                                  5 years





0-10v dimmable, Traic dimmable, DALI, Emergency function optional



Installation method： Recessed , Suspended, Surface





Product N.W.:                     6.04kgs





Certification: CE ROHS ENEC TUV







Size:













Installation open drawing(mm):  585*585mm









Exploded drawing:













Light Distribution Curve:









Product details















                    Polycarbonate optical design                                        Surface mounted











                       Emergency optional                                                    Consistency light







Project













IES Download:



40w-595x595mm IES.pdf







More info: [email protected]
