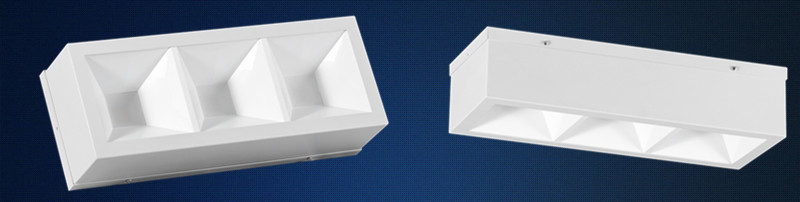

10w LED Grille Light-Surface mounted
10w LED Grille Light-Surface mounted 10w LED Grille Light-Surface mounted 10w LED Grille Light-Surface mounted 10w LED Grille Light-Surface mounted 10w LED Grille Light-Surface mounted

10w LED Grille Light-Surface mounted

Product ID : EG-GL10W-436165
Product Tags :
Product Description



10w Surface LED Grille Linear Light  --- 436*165mm



1st Gen-07.jpg





UGR<16

Why choose UGR<16 Anti-glare LED Luminaires?



The right light can have a favorable effect on various physiological processed in the human body. Statistically, 75% of office workers don't feel comofortable at their work time.

Evergreen LED Grille Panel light solutions can enhance their comfort,task performance, and productivity. Anti-glare light and light consistency allows the teachers to create the right mood to help pupiles to concentrate, relax etc. depending on the activity at hand,and so perform better overall.



Product Benefit:



--Light guided via quadrification optic lens for maximum luminaire efficiency, perfect glare reduction(UGR<16) and homogenous light distribution(85°).

--Robust iron struction with white painting treatment.

--Energy saving upt 50%(compare to fluorescnet lamps)

--Flicker free light thanks to special electronic control gear.

--Luminaire efficacy: >120Lm/w

--Initial color consistency: <5 SDCM

--Lifetime(L80/B50) up to 50,000hrs(at 25°)

--Warranty 5 years








Item No: EG-GL10W-436165-01





Specification:



Power: 10w

Size: 436*165*110mm

Input Voltage: 100-240v AC50/60Hz



Material housing:  Galvanized / Steel optional

Finishing:              Powder paint surface treatment

Optical material:    Polycarbonate



Operating temperature:  -10° ~ +40°

Storage temperature:     -25° ~ +55°



On-/off-cycles:       100,000

Color temperature idnex CRI:    80

Degree of protection(IP):           IP20

Fire-proof rated:                         V2

LED Chip:                            Everlight

LED Driver:                     OSRAM

Driver failure rate(at 5,000hrs):    1%

LED Efficacy:                      130Lm/w

LED Lumen:                        1300Lm

Light Distribution:                     88°

Warranty:                                  5 years



Product N.W.:                     1.5kgs



0-10v dimmable, Traic dimmable, DALI, Emergency function optional





Certification: CE ROHS ENEC







Size:





















Installation:





            1528292458994537.bmp                1528292648658781.jpg



                      Surface                                                Suspended









Light Distribution Curve:








Product details



   1528292762101220.gif                  1528292836947043.jpg

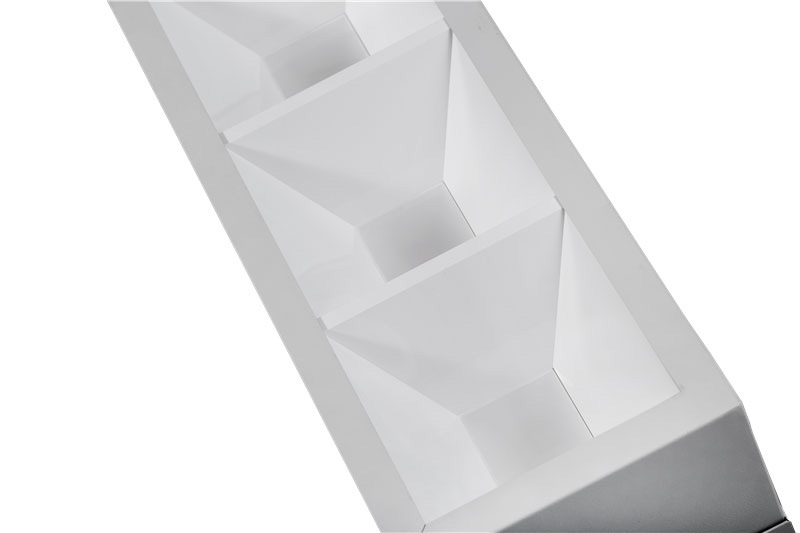

                    Polycarbonate optical design                                        Suspended mounted







                1528278832113126.jpg                                            IMG_8413.JPG



                       Emergency optional                                                    Consistency light







Project















IES Download:
